Agusta AW109SP |
prijs op aanvraag |
Overview
| Base data | | Type: | Helikopter (Turbine) | | Producent: | Agusta | | Model: | AW109SP | | Bouwjaar: | 2018 | | Attributes: | IFR equipped
Commercially registered | | Last annual: | 2/2024 | | Location: | Australië | | Total Time (TTAF): | 470 h | | Prijs: | prijs op aanvraag | | Full details |
| Aanbieder |
Rotortrade
630 Churchmans Road, Suite 103
Newark, DE 19702
Verenigde Staten
Tel: +1 (610) 425-8229 |
| Contact seller |
|
|
|
Full Details
| Base data | | Type: | Helikopter (Turbine) | | Producent: | Agusta | | Model: | AW109SP | | Bouwjaar: | 2018 | | Attributes: | IFR equipped
Commercially registered | | Last annual: | 2/2024 | | Location: | Australië | | Total Time (TTAF): | 470 h | | Prijs: | prijs op aanvraag | | No. of passengers: | 6 | | Landings: | 865 |
| Engine(s) | | Number of engines: | 2 | | Make/Model: | PW207C | PW207C | | Total Time: | 470 h | 470 h | | TBO (hours): | 4000 h | 4000 h |
| Description/Details of engines | Engine 1 cycles 331 IMP/792 PT/656 CT
Engine 2 cycles 326 IMP/786 PT/654 CT |
| Avionics | •iPad mount with two USB in lieu of 8.4" cockpit central display
•Digital map Euronav V Euroavionics
•TAS-620 Avydine
•Weather radar RDR 2000 Bendix/King
•EFIS 2 displays with FMS, SVS, HTAWS, slip indicator and RBP x2
•Reversionary control panel
•EFIS pilot/co-pilot navigation synchronization switch
•Electronic standby instrument system
•Radio management system RTU-4210 Collins x2
•VHF/AM VHF-4000E Collins x2
•VOR/ILS/ADF NAV-4000 Collins
•VOR/ILS NAV-4500 Collins
•DME-4000 Collins
•Radio altimeter ALT-4000 Collins
•Attitude heading reference system x2
•Air data unit x2
•GPS/SBAS Chelton interfaced to EFIS/FMS x2
•Digital Audio Control System COBHAM cockpit panel x2
•4-axis dual duplex digital AFCS with flight director
•Electronic clock x2
•Magnetic compass indicator x2
•ELT C406-N HM Artex
•Transponder mode S TDR-94 Collins
•8.4" Cockpit Display as separate item with Leonardo service tag
•EVS 2300 Max will be supplied as separate item with Leonardo service tag |
| Equipment | •213 US gal crash-resistant fuel system
•Baggage compartment extension system 2.3 m
•HISL on horizontal stabilizer
•Electrically operated passenger steps LH
•24 VDC/33 Ah nickel-cadmium battery 20 cells
•Cockpit access handle co-pilot side
•Airframe hour meter
•Engine compartment fire extinguisher x2
•Fuel cap with key lock
•Pulsed chip detectors
•Reinforced windshields
•Retractable/rotating landing light nose mounted
•Rotor brake
•Windshield wipers
•ECS air conditioning
•Dual controls
•Baggage compartment lights
•Crash-resistant crew seats fore and aft adjustable
•Crew open door actuators
•First aid kit
•Fuel drain electrical valves
•Portable fire extinguisher
•Crew shoulder harness with inertial reels
•Tail boom strake
•Green, red and white position lights NVG friendly
•Taxing lights RH & LH
•Landing lights RH & LH on landing gear sponsons
•Anti collision lights NVG friendly x2
•Cockpit utility lights
•Mast vibration absorber |

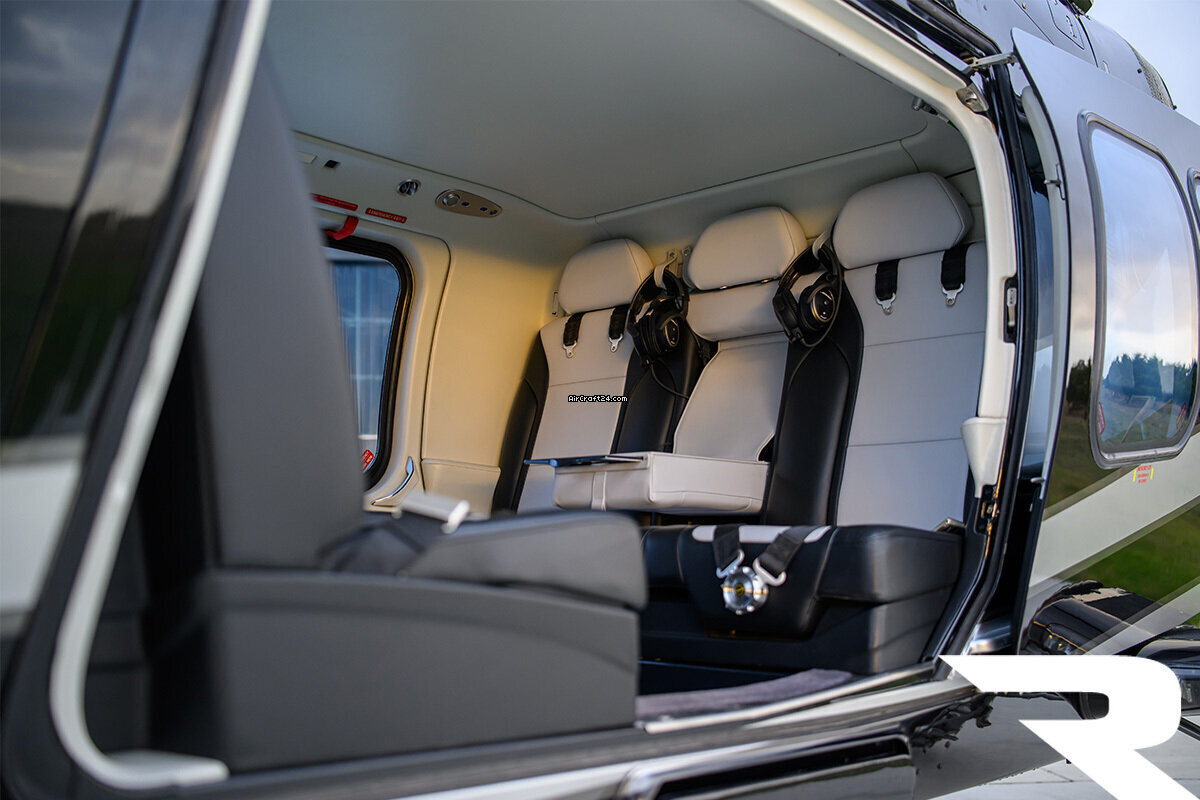

| Interior | Passenger Cabin
•All seats crash-resistant covered with leather or
fabric/leather
•3 fwd facing seats with foldable armrest and glass
holder
•3 aft facing seats with see-through modification and
with foldable armrest and glass holder
•Forward facing side armrests
•4-point shoulder harness with inertial reels and safety
belts for all passenger seats
•Super silent soundproofing
•Liners leather/leatherette covered
•Acoustic screen around doors
•Cabin double layer acrylic windows
•Decoration trim with metal inserts
•Intercommunication system for passengers
•Cabin loudspeakers x2
•Reading lights, emergency lights, floor courtesy lights
•Upper and lower air vents
•Floor carpeting
•Carpeting protection
Cockpit equipment
•Interseat console tray with 12 V power supply
•Multipurpose holder with space provision for fire
extinguisher
•Right door pocket
•Headset hooks x2
•Cyclic and collective leather gators
•Curtains in cockpit on upper windows |
| Opmerkingen | Price reduced - reasonable offers considered
Configuration VIP
Empty weight 2,266 kgs
MTOW 3,175 kgs
Flight rules SP dual controls IFR
Highlights
•Super silent soundproofing
•Digital map Euronav V Euroavionics
•TAS-620 Avydine
•Weather radar RDR 2000 Bendix/King
•4-axis dual duplex digital AFCS with flight director
•213 US gal crash-resistant fuel system
•Baggage compartment extension system 2.3 m
•ECS air conditioning
•Electrically operated passenger steps LH
•Mast vibration absorber |
