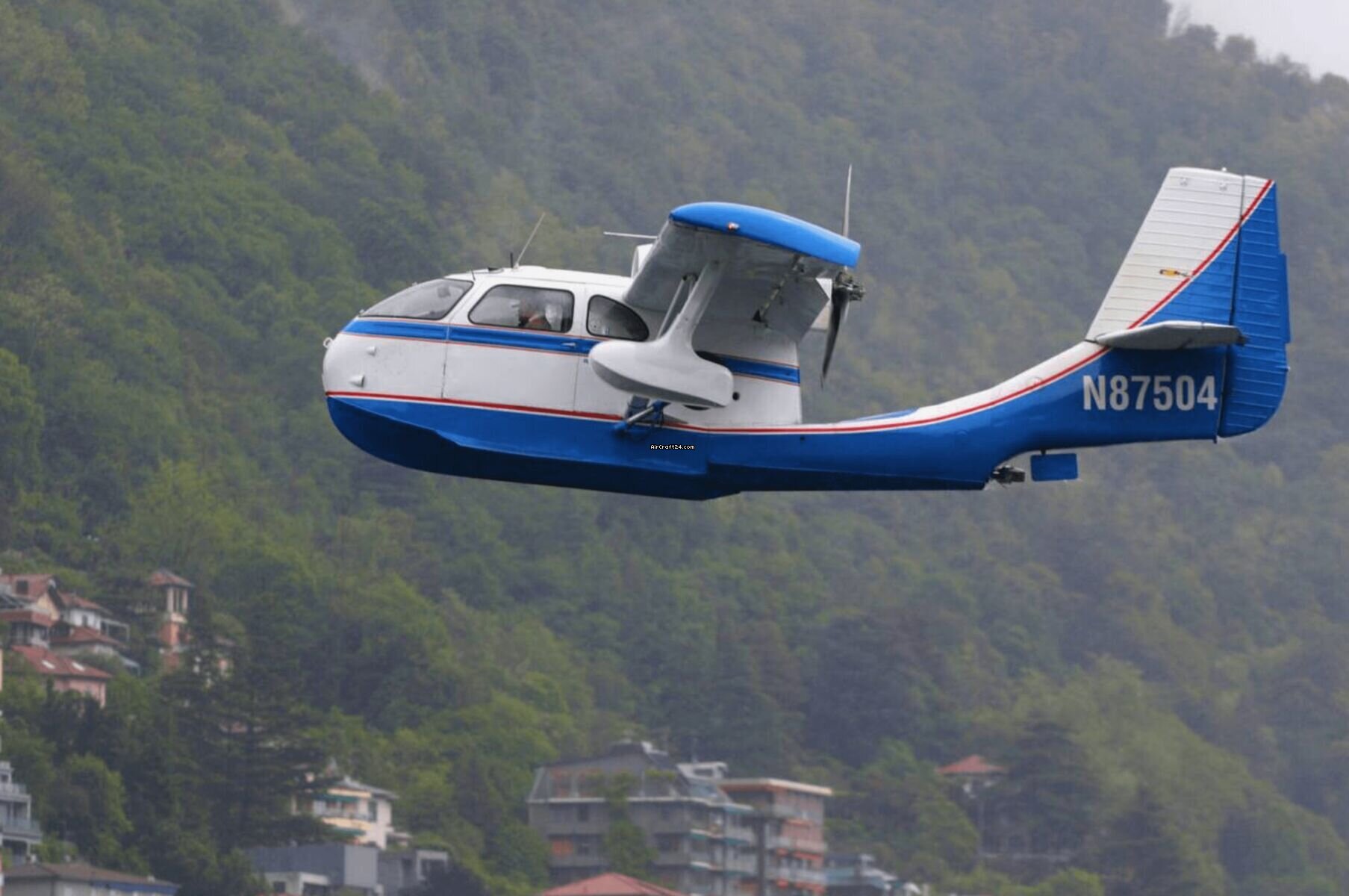

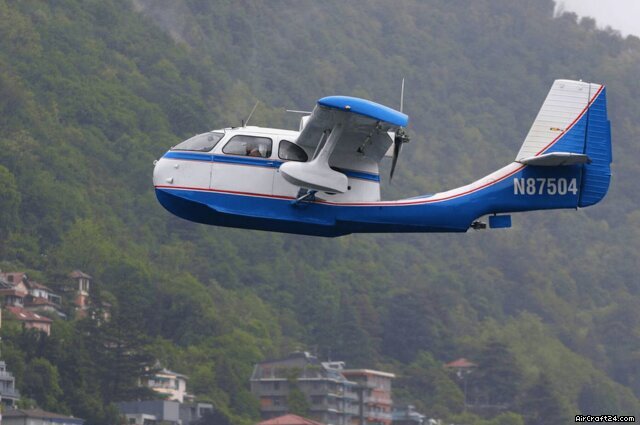

Republic RC-3 Seabee amphibian |
€ 114.500 |
Overview
| Base data | | Type: | Single Prop | | Producent: | Republic | | Model: | RC-3 Seabee amphibian | | Bouwjaar: | 1946 | | Registration No.: | N87504 | | Serial No.: | 56 | | Location: | Italië, Como | | Total Time (TTAF): | 2485 h | | Prijs: | € 114.500 | | Full details |
| Aanbieder |
Aeromeccanica S.A
Aeroporto Cantonale di Locarno
6596 Gordola
Zwitserland
Tel: +41-91-2103128
Fax: +41-91-7450037 |
| Contact seller |
|
|
|
Full Details
| Base data | | Type: | Single Prop | | Producent: | Republic | | Model: | RC-3 Seabee amphibian | | Bouwjaar: | 1946 | | Registration No.: | N87504 | | Serial No.: | 56 | | Location: | Italië, Como | | Total Time (TTAF): | 2485 h | | Prijs: | € 114.500 |
| Avionics | Bendix King VHF COM
Narco VOR Receiver/Indicator
Remote Compass System
Bendix King KR85 ADF
Bendix King KT76 Transponder C
Sigtronic Intercom
406 mHz ELT |
| Exterior | | White with blue and red accents, in good condition |
| Interior | | Beige vinyl and fabric, in good condition |
| Opmerkingen | Very nice and rare and classic historical Amphibian Republic Seabee, located in Europe
Airframe Serial Number 56
Total Time: 2485.51 hours
Engine Lycoming GO-480-B1A6, 260 HP, S/N 1135
Total Time: 3161:45 hrs
Time Since Major Overhaul: 204:33 hrs
(last Overhaul performed by Aero Engine Italy, October 10, 2016)
Annual Inspection May 2025
Compressions: 70, 69, 71, 70, 70, 69 over 80
Propeller Hartzell HC-A3V20-3L/LV9333C-5 S/N FC34
Total Time: 944:09 hrs
SMOH 204:33 hrs
Last Overhauled by Pubbli Aer Foto Aeroservizi on 19/09/2016
• Angle of Attack System with cockpit display instrument
• Engine driven vacuum pump system
• King 76A Transponder
• Oversize spray rails
• 2 landing lights GE 4509 in the wing
• Whelen three strobe light system
• Cabin portable fire extinguisher
Installed STC's Supplemental Type Certificate:
• STC #SA00068LA Tail wheel adapter ring
• STC #SA915NW Model 940 South Wind combustion cabin heater and associated distribution system
• STC SA615NW Lycoming G0-435-C2B, GS0/IGS0-480
• STC SA815NW Cleveland brake discs
• STC SA71GL Air filters
• STC SE914NW Propeller governor adapter with a combination adapter/valve to provide propeller reversing control
• STC SA216NW Removal of throttle, propeller, and mixture controls from the instrument panel and installation in an overhead panel. Relocation of carburetor heat to overhead position
• STC SA2386WE Fiberglass Camber Wing Tips
• STC SA70NW Step vents
Specifications subject to verification by purchaser |
